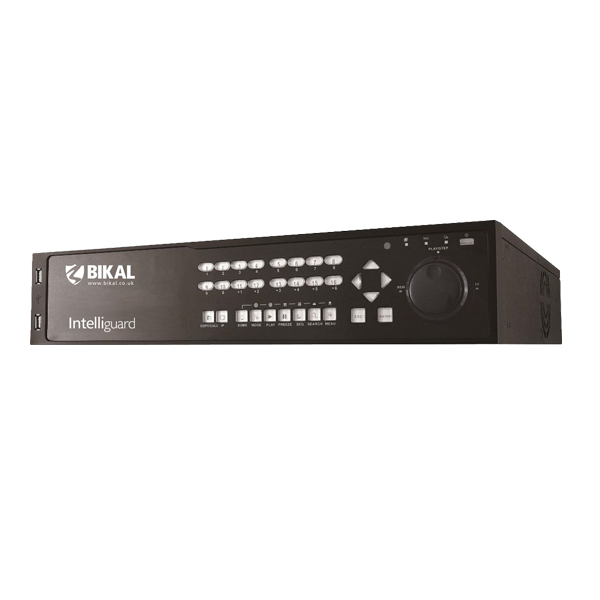

16CH NVR (PoE) with Local Display

Ürün Kodu BKI-NV9000

  • Embedded Linux System
  • Full HD Local Display Output
  • 8 / 16 IP Channels Support
  • H.264 / MJEG Recording and Playback
  • 8 / 16Ch PoE Switch Included
  • Secure Closed Circuit LAN for IP Cameras
  • IP Camera Automatic Recovery
  • IP Camera Plug & Play Support
  • IP Camera Dual Streams Support
  • Per Channel Recording Configuration
  • Audio Recording
  • Data Protection
  • Intelliguard Remote & CMS Support
  • iPhone, iPad and Android Smart Phones Apps Support
Model Name: BKI-NV9600-1U BKI-NV9600-4SAT
System & Video
Operation System Embedded ( Linux )
Video Standard NTSC / PAL Switch Selectable
IP Camera Input SD Memory 1GByte
Video Output (HDMI/VGA) 1024 x 768, 1280 x 1024 x 768, 720p, 1080p pixels
Audio
Input: x 16, x 16, RJ-45 x 16, x 16, RJ -45
Output x 1, RCA Line-Out
Supported Format PCM, G.711
Audio Data Rate 64kbps/Ch (Camera Dependent)
Recording / Playback
H.264 or MJPEG
(IP Recording)		 NTSC 480 pps @ 1080P, 720P & VGA (Camera Dependent)
PAL 400 pps @ 1080P, 720P & VGA (Camera Dependent)
H.264 or MJPEG
(IP Playback)		 NTSC 120pps @ 1080P, 240pps @ 720P & 480pps @ VGA (Camera Dependent)
PAL 100pps @ 1080P, 200pps @ 720P & 400pps @ VGA (Camera Dependent)
Maximum Network Input
Throughput		 80 Mbps
DLT / Pre-Alarm Configurable
Recording Mode Continuous, Schedule, Event (Motion, Alarm & Video Loss)
Playback Channel 1 / 4 / 9 /16 Channels
Playback Mode / Search Forward, Reverse, Step-by-Step and Different Speed Play / Calendar, Event & Panorama
Storage
Build-in Storage Interface x 4, 3.5, 3.5 ” HDDs | x 1, ex 1, e -SATA Port
USB Ports x 2, USB 2.0
Backup USB Storage Backup via DVR USB Port; Remote Archive via Client Software
Network & Communication
Network Port (Uplink) x 1, RJ-45, 10/100/1000 Mbps
Network Ports x 16, RJ-45 with PoE,10/100 Mbps x 16, RJ-45 with PoE,10/100 Mbps
Power Over Ethernet IEEE 802.3at IEEE 802.3at
Remote / Utility Software Intelliguard Remote / Device Search, DVRPlayer, Bikal CMS
Remote Operation Monitoring, Playback, Recording, System setup, Dome camera control, Archiving
General
Unit Dimensions 430(W) x 44(H) x 415(D) mm | 17(W) x 1.8(H) x 16.4(D) inch
Unit Weight 6.5 kg / 14.4 lbs 9 kg / 19.9 lbs
Package Dimensions 552 (W) x 165(H) x 505(D) mm | 21.8(W) x 6.5(H) x 19.9(D) inch
Package Weight 8.5 kg / 18.8 lbs 11.5 kg / 25.4 lbs
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Operation Relative Humidity 10% ~ 90% Non-condensing
System Power Supply AC 100〜240V, 50 -60Hz, 300W AC 100〜240V, 50 -60Hz, 300W
Power Arrangement 100 W for NVR System / 200W for PoE Devices 100 W for NVR System / 200W for PoE Devices
  • Full HD GUI
  • IR Remote Control
  • UPnP
  • AVI File Export
  • Panorama Search
  • USB Mouse / Keyboard / Thumb Drive Support
  • PDF Belgesini İndir
